Notification Channels

Article Type: Concept
Audience: System Administrators, Solution Architects
Module: System Configuration / Notifications
Applies to Versions: All Versions

1. Overview

Notification Channels provide a centralized system for configuring and managing automated email notifications within the Fuuz platform. They enable your applications to send structured, branded email alerts when specific events occur, such as system errors, status changes, or process completions. By creating notification channels, you can establish reusable communication pathways that deliver consistent, well-formatted notifications to designated recipients.

2. Architecture & Data Flow

Definitions

• Notification Channel: Parent entity that associates a specific event type with email notification configuration, input schema validation, and recipient management.
• Input Schema: JSON Schema definition at the channel level that validates payload data, ensuring consistent parameter structure for all notifications sent through the channel.
• Email Template: JSONata expression that transforms input data into formatted HTML email content with dynamic subject lines and body content.
• Payload Data: JSON object passed to the notification channel when triggered, containing parameters, configuration values, or contextual information about the event.
• Binding Key: Unique identifier following hierarchical naming convention used by applications to target specific channels when triggering notifications.
• Recipient: User, role, or email address that will receive notifications sent through a channel.

Components

• Channel Definition: Name, description, input schema, binding key, and send email toggle
• Email Template Engine: JSONata processor that transforms payload data into formatted email content
• Payload Validator: JSON Schema validation engine ensuring data conforms to channel input schema
• Recipient Manager: System managing delivery to users, roles, and custom email addresses
• Notification Router: Message broker that routes notifications to appropriate channels via binding keys

Data Flow

The notification process follows this sequence:

1. Event Occurs: Application detects condition requiring notification (e.g., printer error, low inventory)
2. Data Collection: Application gathers relevant data matching the channel's input schema structure
3. Channel Invocation: Application sends payload data to channel using its binding key
4. Schema Validation: System validates payload against input schema, rejecting invalid data
5. Template Processing: Email template transforms validated input data into formatted content
6. Recipient Resolution: System resolves all configured recipients (users, roles, email addresses)
7. Email Delivery: Formatted email sent to all resolved recipients

3. Use Cases

• Equipment Error Alerts: Notify maintenance teams immediately when production equipment encounters errors, including printer failures, PLC communication issues, or sensor malfunctions.
• Integration Failure Notifications: Alert IT teams when ERP consumption posting fails, EDI orders cannot be processed, or API connections are lost.
• Quality Control Alerts: Notify supervisors when products fail quality inspections, measurements fall outside specifications, or quarantine holds are placed.
• Inventory Threshold Warnings: Alert purchasing when inventory levels drop below reorder points, stock becomes unavailable, or expiration dates approach.
• Production Status Updates: Notify stakeholders when work orders complete, production milestones are reached, or shipments are ready.
• System Maintenance Alerts: Inform administrators about scheduled maintenance windows, system updates, or configuration changes.
• Compliance Notifications: Alert quality teams about audit requirements, certification renewals, or regulatory reporting deadlines.
• User Action Requests: Notify approvers when purchase orders need approval, change requests await review, or documents require signatures.

4. Screen Details

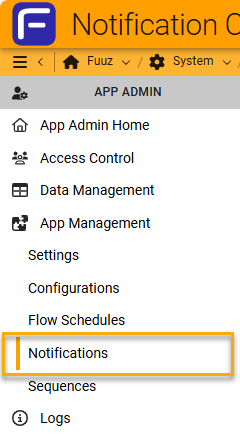

The Notification Channels screen is accessed via:

Fuuz → System → Internet of Things → Notification Channel

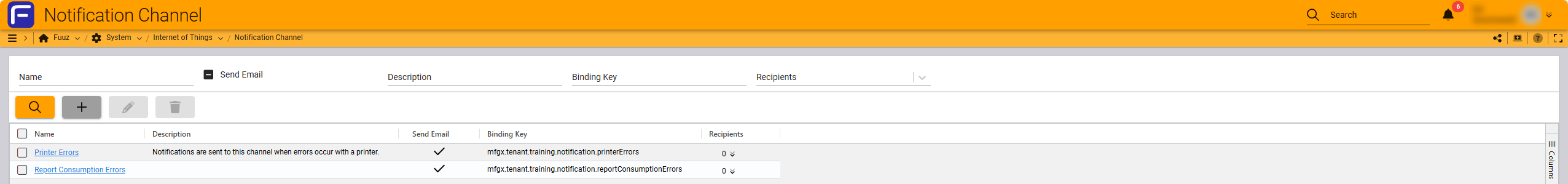

Main Screen

The Notification Channel list displays all configured channels:

• Name: Channel identifier
• Send Email: Checkmark indicating email delivery is enabled
• Description: Channel purpose explanation
• Binding Key: Unique identifier for application integration
• Recipients: List of configured notification recipients

Actions:

• Search: Filter channels by name or binding key
• Create: Add new notification channel
• Update: Modify existing channel configuration
• Delete: Remove channel and all configuration

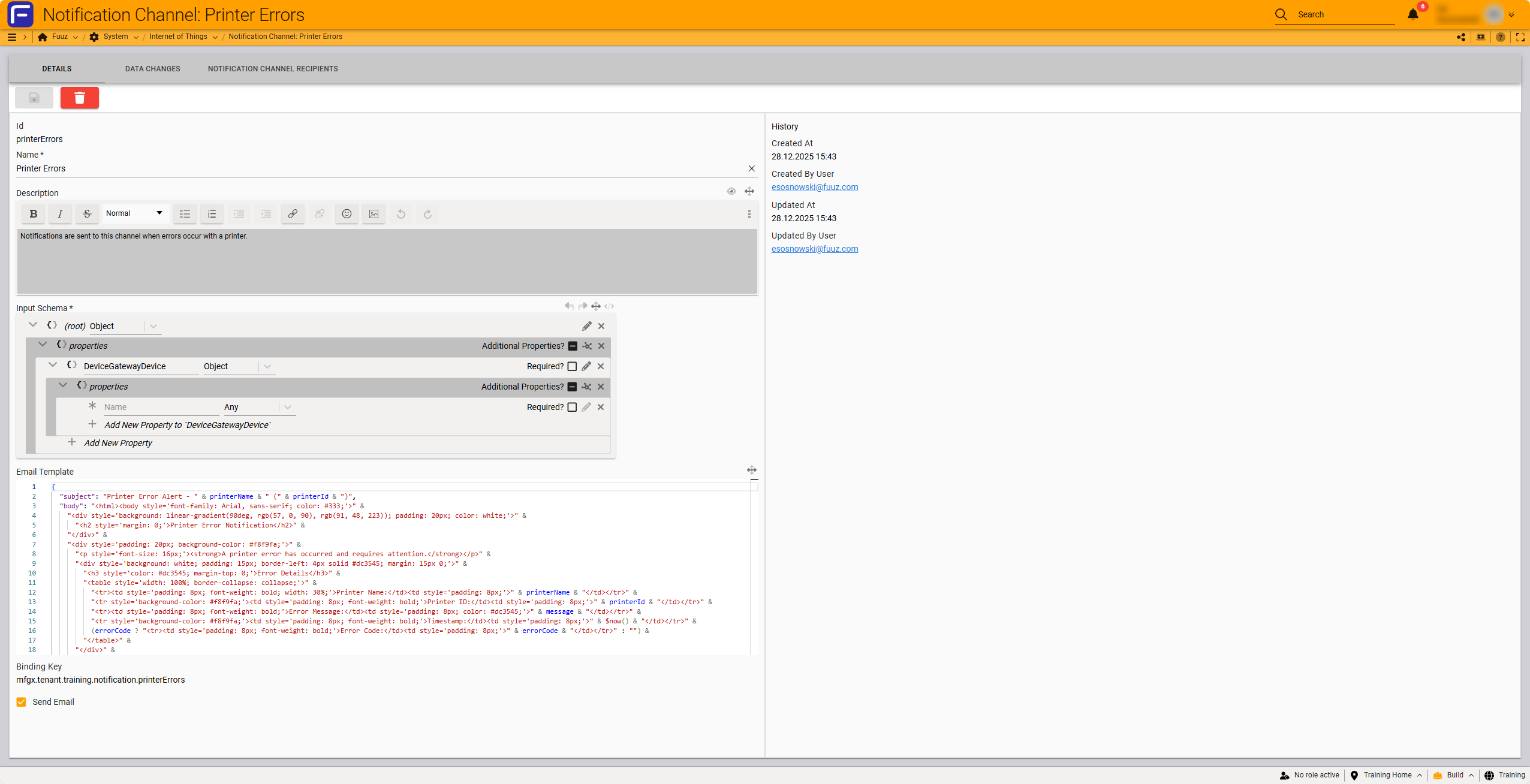

Channel Detail View

Selecting a channel displays detail view with three tabs:

• Details Tab: Channel configuration including ID, Name, Description, Input Schema, Email Template, Binding Key, and Send Email toggle
• Data Changes Tab: Audit log showing all modifications to the channel
• Notification Channel Recipients Tab: Manage users, roles, and email addresses that receive notifications

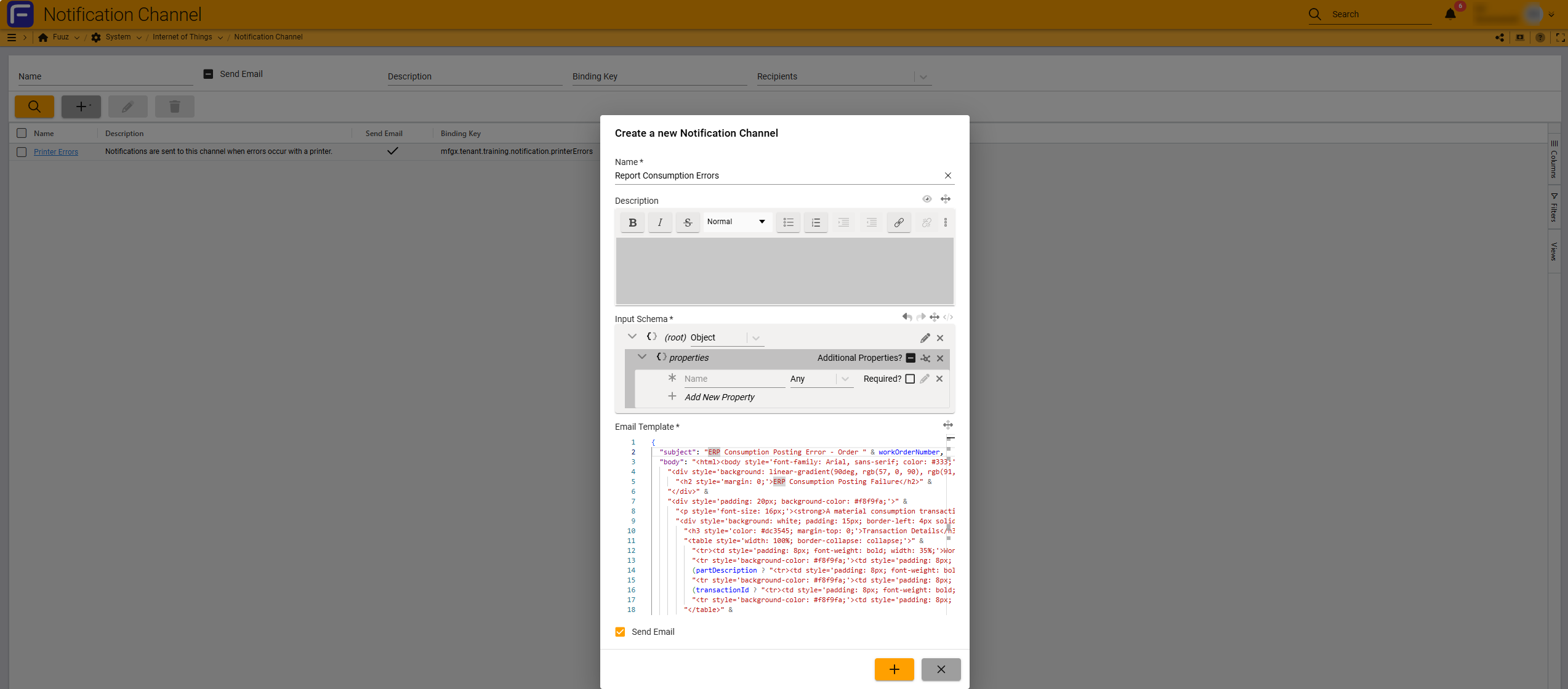

Create Channel Form

Add Recipients

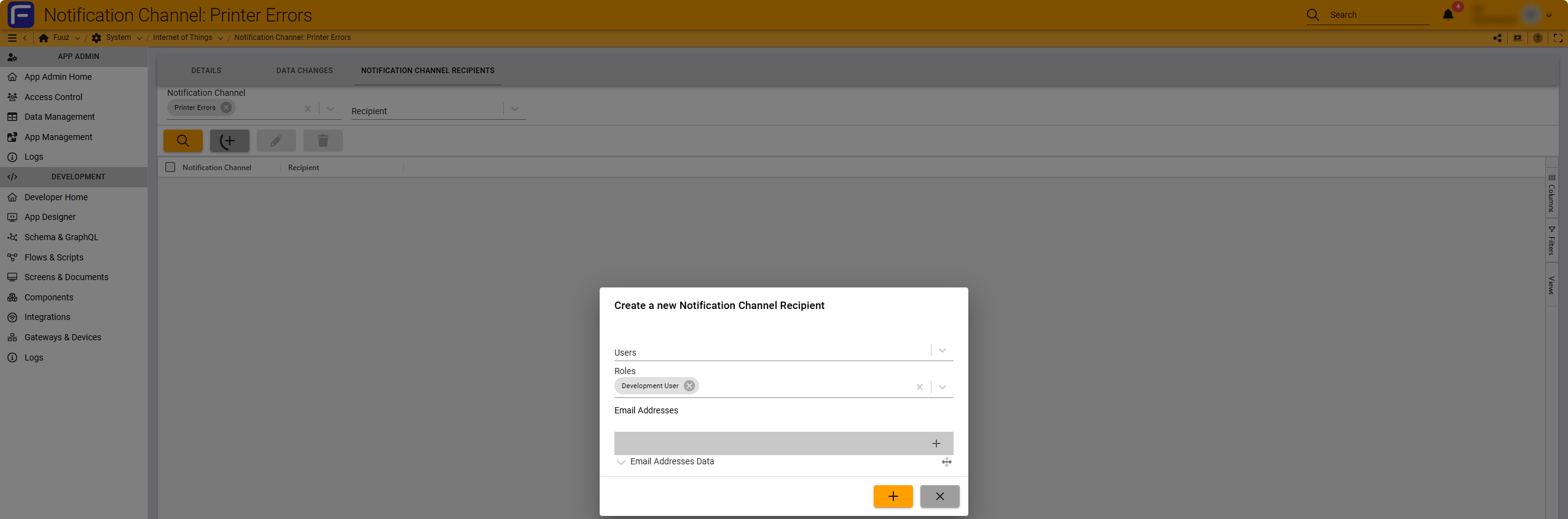

After creating a channel, configure recipients via the Notification Channel Recipients tab:

• Users: Select specific users from your organization
• Roles: Send to all users assigned to specific roles (e.g., "Maintenance Manager")
• Email Addresses: Enter custom email addresses for external contacts or distribution lists

5. Technical Details

Input Schema Structure

The Input Schema uses JSON Schema format to define expected payload structure:

{
  "type": "object",
  "properties": {
    "propertyName": {
      "type": "string|number|boolean|array|object"
    }
  },
  "required": ["propertyName"]
}

Example - Printer/Device Error Schema:

{
  "type": "object",
  "properties": {
    "deviceName": { "type": "string" },
    "deviceId": { "type": "string" },
    "message": { "type": "string" },
    "errorCode": { "type": "string" }
  },
  "required": ["deviceName", "deviceId", "message"]
}

Email Template with JSONata

Email templates use JSONata to create dynamic content. Structure templates as objects with subject and body properties:

Example - Printer Error Template:

{
  "subject": "Printer Error - " & printerName,
  "body": "<html><body>" &
    "<h2>Printer Error Notification</h2>" &
    "<p><strong>Printer:</strong> " & printerName & "</p>" &
    "<p><strong>Error:</strong> " & message & "</p>" &
    (errorCode ? "<p><strong>Code:</strong> " & errorCode & "</p>" : "") &
  "</body></html>"
}

Example - ERP Posting Error Template:

{
  "subject": "ERP Posting Error - Order " & workOrderNumber,
  "body": "<html><body>" &
    "<h2>ERP Consumption Posting Failure</h2>" &
    "<p><strong>Work Order:</strong> " & workOrderNumber & "</p>" &
    "<p><strong>Part:</strong> " & partNumber & "</p>" &
    "<p><strong>Quantity:</strong> " & quantity & " " & uom & "</p>" &
    "<p><strong>Error:</strong> " & errorMessage & "</p>" &
  "</body></html>"
}

Binding Key Format

Binding keys follow a hierarchical naming convention:

mfgx.tenant.{application}.notification.{channelName}

Examples:

• mfgx.tenant.mes2.notification.printerErrors
• mfgx.tenant.wms.notification.erpPostingErrors
• mfgx.tenant.mes2.notification.qualityFailures

Triggering Notifications

Applications trigger notifications by publishing messages to the channel's binding key with payload data matching the input schema. The system validates the payload, processes the email template, and delivers to all configured recipients.

Device Integration

Notification channels can reference device gateways through the Input Schema, enabling notifications that include device context such as equipment name, location, status, and operational data.

6. Resources

• JSONata Official Documentation
• JSON Schema Specification
• Related KB Article: Data Flows Overview
• Related KB Article: User and Role Management
• Related KB Article: System Integration Patterns

7. Troubleshooting

Best Practices

• Descriptive Naming: Use clear channel names indicating purpose (e.g., "Printer Errors", "Low Inventory Alerts")
• Document Thoroughly: Use Description field to explain when notifications trigger and what data is included
• Minimal Schemas: Only include fields actually needed for the notification
• Test Templates: Verify templates with both complete and minimal data sets before production use
• Use Inline CSS: Include inline styles in HTML emails for maximum client compatibility
• Role-Based Recipients: Prefer roles over individual users for easier maintenance as team members change
• Actionable Subject Lines: Create clear subjects that help recipients prioritize (e.g., "🚨 URGENT: Production Line Down")
• Include Context: Provide timestamp, location, and equipment identifiers in notification body
• Review Recipients: Periodically audit recipient lists to ensure appropriate people receive notifications
• Document Binding Keys: Maintain master list of channels and their binding keys for development reference
