Flow Schedules

Article Type: Concept
Audience: App Administrators, Application Designers, Developers
Module: App Management
Applies to Versions: All Versions

1. Overview

Flow Schedules provide automated time-based execution of Data Flows using flexible scheduling patterns including cron expressions, calendar-based rules, and interval timers. This feature replaces the deprecated periodic nodes within flows, offering centralized schedule management where App Administrators can configure when and how flows execute without modifying flow logic. Flow Schedules support complex scenarios such as business-hour-only executions, multi-timezone operations, weekday-only processing, and custom exclusion patterns, making them ideal for integrations, batch processing, reporting, and data synchronization tasks.

2. Architecture & Data Flow

Definitions

• Flow Schedule: Parent entity that associates a specific Data Flow with scheduling configuration, input schema validation, and one or more execution frequencies.
• Schedule Frequency: Child entity defining a specific execution pattern (time-based, daily, monthly, or cron) with its own timezone, payload data, and active state.
• Input Schema: JSON Schema definition at the Schedule level that validates payload data for all frequencies, ensuring consistent parameter structure.
• Payload Data: JSON object passed to the Data Flow when a frequency triggers execution, containing parameters, configuration values, or contextual information.
• Schedule Type: The pattern definition method for a frequency: Time (interval-based), Daily (day-of-week), Monthly (day-of-month), or Cron (expression-based).
• Cron Expression: Standard 5-field cron syntax (minute, hour, day-of-month, month, day-of-week) used for complex scheduling patterns.
• Estimated Next Execution: Calculated field showing when a frequency is predicted to trigger next based on its schedule pattern and timezone.
• Status Message: Field displaying execution status, validation errors, or configuration warnings for a frequency.

Components

• Schedule Definition: Name, description, input schema, and data flow reference
• Frequency Executor: Scheduling engine that triggers data flow executions based on frequency patterns
• Timezone Processor: Moment.js-based timezone handler supporting IANA database and daylight saving time transitions
• Payload Validator: JSON Schema validation engine ensuring frequency payload data conforms to schedule input schema
• Cron Expression Builder: UI-based calendar interface that generates standard cron expressions from user-friendly inputs
• Execution Logger: System that records frequency triggers, flow executions, and status messages

Schedule-Frequency Relationship

A single Flow Schedule can have multiple Frequencies, enabling complex execution patterns:

• One-to-Many Relationship: One Schedule → Multiple Frequencies
• Shared Data Flow: All frequencies execute the same Data Flow
• Shared Input Schema: All frequencies validate against the same schema
• Independent Payloads: Each frequency can pass different payload data to the flow
• Independent Schedules: Each frequency has its own execution pattern and timezone
• Independent Active State: Frequencies can be individually enabled or disabled

3. Use Cases

• E-Commerce Integration - Weekdays Only: Schedule order synchronization to run Monday through Friday at 6:00 AM, avoiding weekend processing when the warehouse is closed.
• Stock Price API - Business Hours: Execute API calls every hour from 9:30 AM to 4:00 PM Eastern Time during market hours, with separate frequencies for each hour.
• Monthly Report Generation: Generate financial reports on the 1st of each month at midnight, with payload specifying the report type and distribution list.
• Multi-Timezone Operations: Run the same integration flow at 8:00 AM local time across multiple plant locations by creating separate frequencies with different timezones.
• Data Synchronization - Multiple Intervals: Synchronize critical data every 15 minutes during business hours, but only once per hour overnight, using different frequencies.
• Batch Processing with Exclusions: Process transactions Monday through Saturday at 2:00 AM, excluding Sundays and with custom logic in the flow to skip company holidays.
• Interval-Based Monitoring: Poll equipment status every 5 minutes using a Time-type frequency with interval configuration.
• Complex Cron Patterns: Execute maintenance tasks on the 15th and last day of each month at 11:00 PM using cron expression scheduling.
• Seasonal Schedules: Run promotional email flows daily in December but weekly in other months by activating/deactivating different frequencies seasonally.
• Parameterized Executions: Execute the same ETL flow for different data sources by creating multiple frequencies with different payload configurations specifying source parameters.

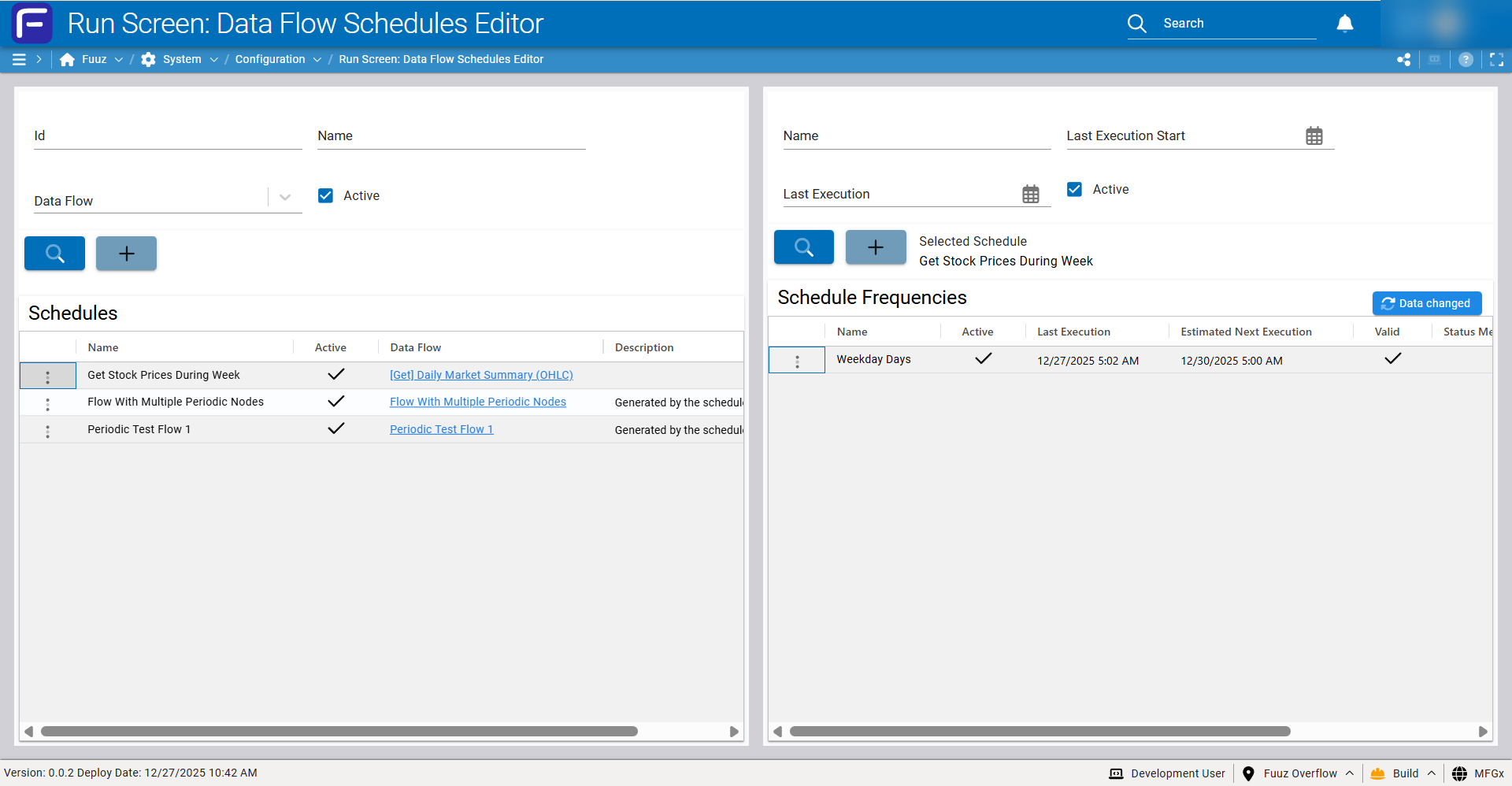

4. Screen Details

The Flow Schedules screen is accessed via App Management > Flow Schedules in the App Admin menu section. The interface is split into two panels:

Left Panel: Schedules

Displays all Flow Schedules in the current application with the following columns:

• Name: Schedule identifier (clickable to select schedule)
• Active: Checkmark indicating if schedule is active (parent-level control)
• Data Flow: Link to the associated Data Flow that will be executed
• Description: Optional markdown description of schedule purpose

Actions (Left Panel):

• Search: Filter schedules by name or data flow
• Create Schedule: Add new schedule with data flow selection and input schema definition
• Update Schedule: Modify schedule name, description, input schema, or data flow reference

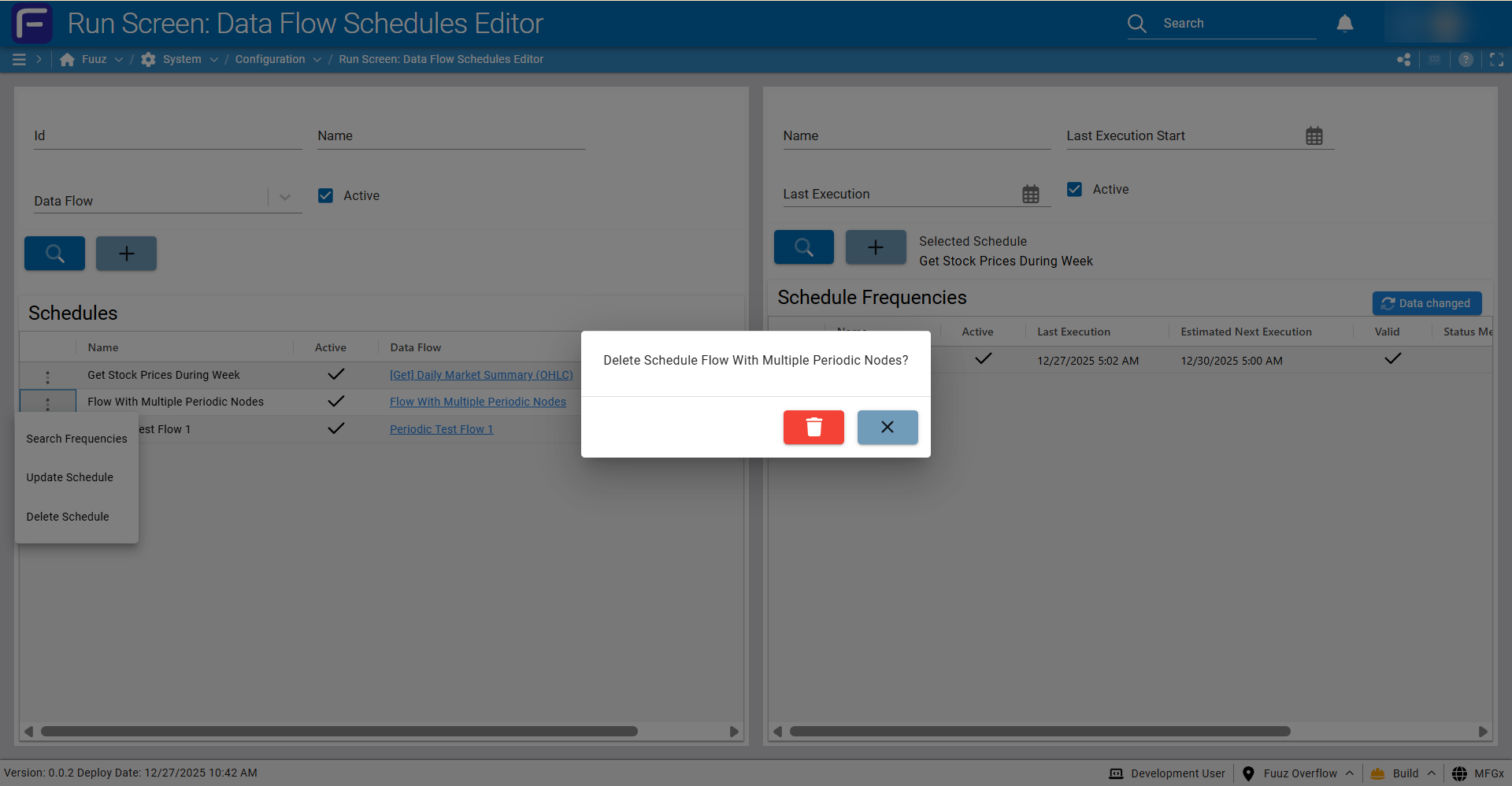

• Delete Schedule: Remove schedule and all associated frequencies
• Active Filter: Filter to show only active or inactive schedules

Right Panel: Schedule Frequencies

Displays all frequencies for the selected schedule with the following columns:

• Name: Frequency identifier (e.g., "Weekday Days", "Hourly During Business Hours")
• Active: Checkmark indicating if this specific frequency is enabled
• Last Execution: Timestamp of most recent frequency trigger
• Estimated Next Execution: Calculated next trigger time based on schedule pattern
• Valid: Checkmark indicating payload data passed schema validation
• Status Message: Execution status, error messages, or validation warnings

Actions (Right Panel):

• Search Frequencies: Filter frequencies by name
• Create Frequency: Add new frequency to the selected schedule
• Update Frequency: Modify frequency configuration, schedule pattern, or payload

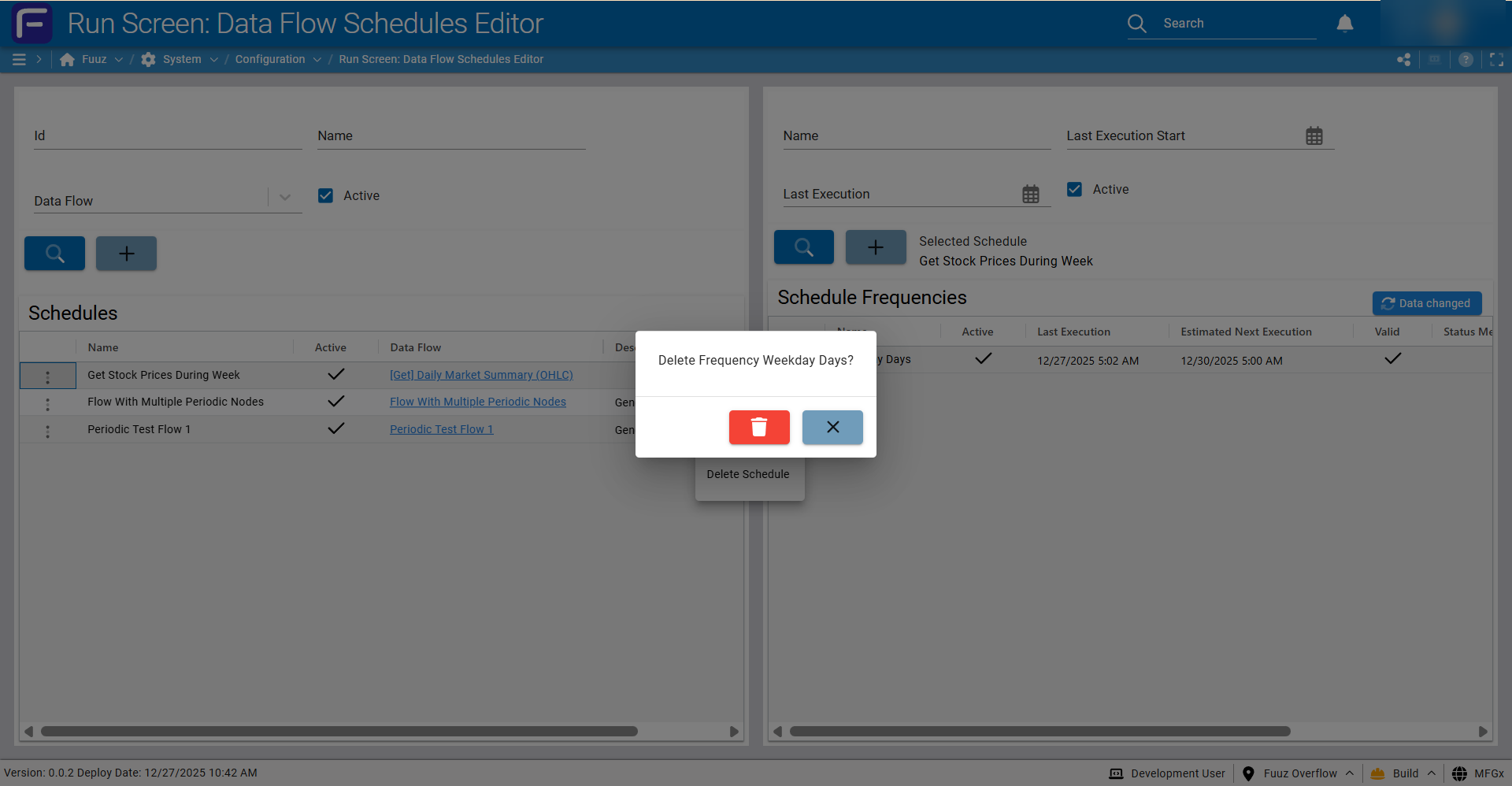

• Delete Frequency: Remove frequency from schedule
• Active Filter: Show only active or inactive frequencies

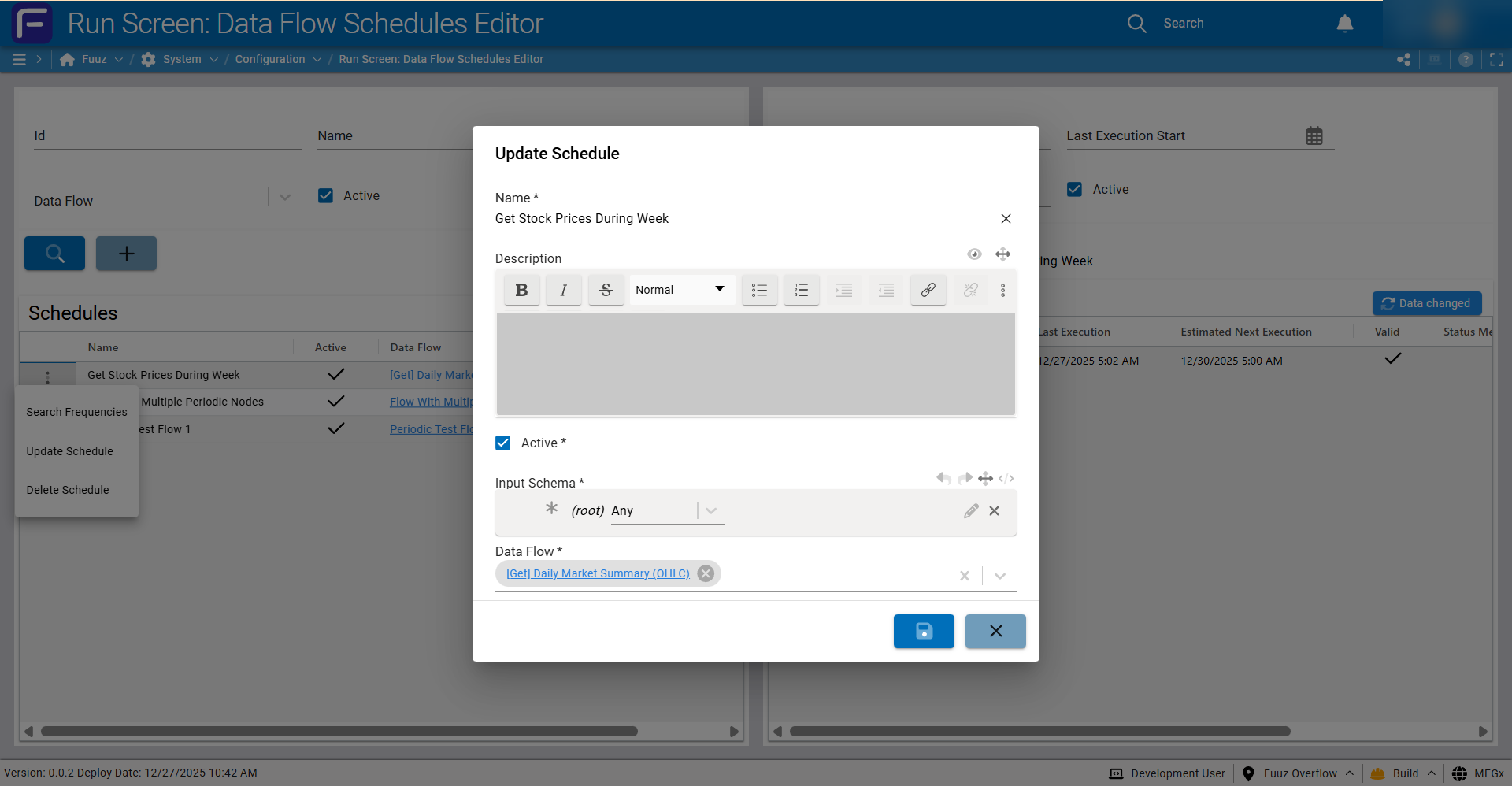

Schedule Editor Form

When creating or updating a schedule:

Frequency Editor Form

When creating or updating a frequency:

5. Technical Details

Schedule Types

Flow Schedules support four schedule type patterns, each with a UI-based configuration interface that generates the underlying cron expression or scheduling logic:

TIME (Interval-Based)

The TIME tab provides interval-based scheduling for continuous operations:

• Every N minutes: Execute every X minutes (e.g., every 5, 15, 30 minutes)
• Every N hours: Execute every X hours (e.g., every 1, 2, 4 hours)
• Starting Point: Interval begins from the first execution date and continues indefinitely while active
• Use Case: Continuous monitoring, polling APIs, real-time data synchronization

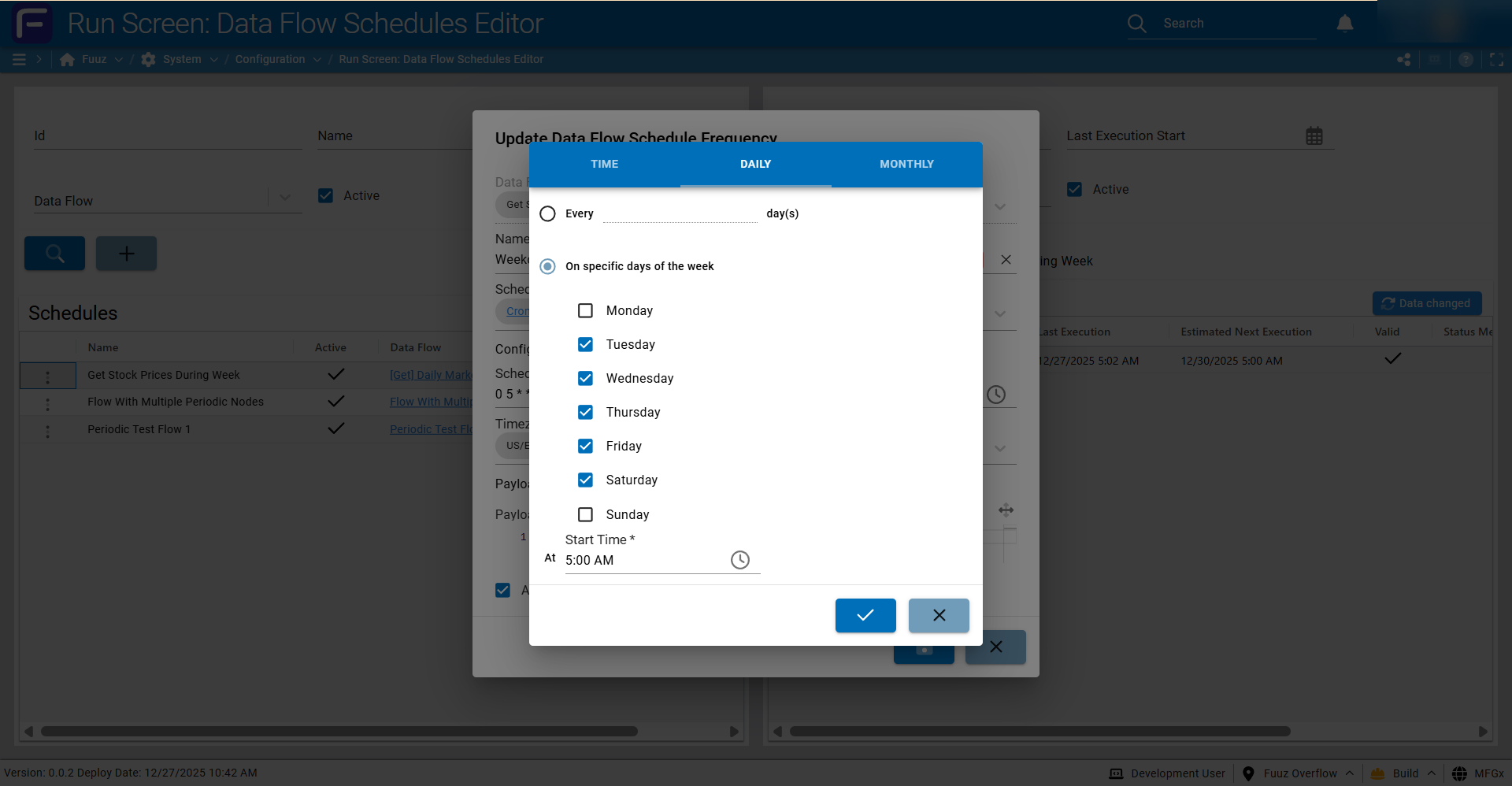

DAILY (Day-of-Week Based)

The DAILY tab provides day-of-week scheduling with calendar-style selection:

• Every X day(s): Execute every N days starting from first execution date (e.g., every 2 days, every 3 days)
• On specific days of the week: Select any combination of Monday through Sunday using checkboxes
• Start Time: Time of day for execution (24-hour or 12-hour format with AM/PM)
• Example: Tuesday through Saturday at 5:00 AM for weekday-only operations (excluding Sunday and Monday)

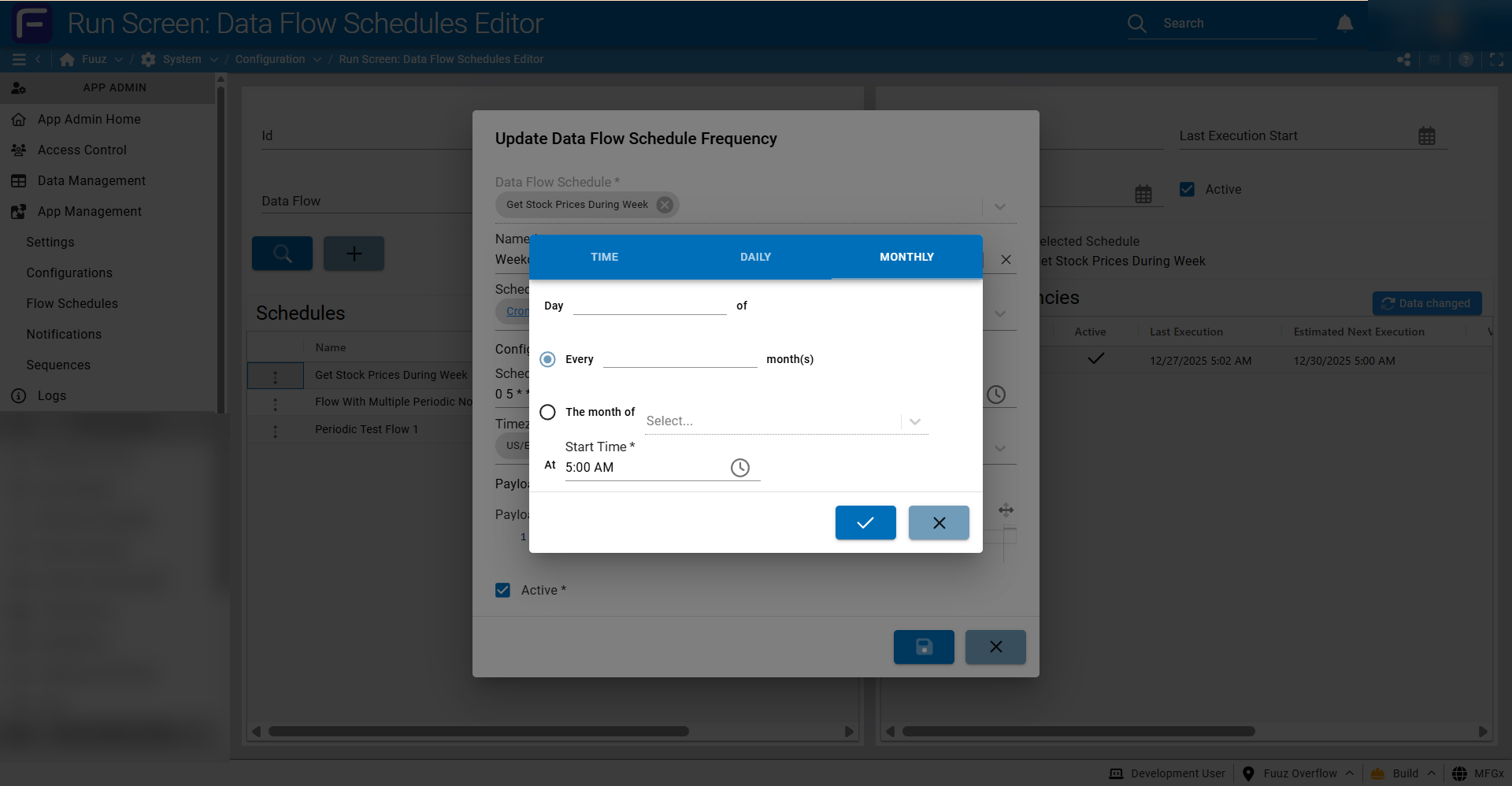

MONTHLY (Day-of-Month Based)

The MONTHLY tab provides day-of-month and month-specific scheduling:

• Every X month(s): Option 1 - Execute on day N of every X months
• Day field: Specify day of month (1-31) for execution
• Month(s) field: Specify interval - every 1 month (monthly), every 2 months (bi-monthly), etc.
• The month of: Option 2 - Execute only in specific named months selected from dropdown
• Start Time: Time of day for monthly execution (combined with day selection)
• Example 1: Day 1 of every 1 month at 12:00 AM = First of every month at midnight
• Example 2: Day 15 of every 3 months at 5:00 AM = Quarterly on the 15th
• Use Case: Monthly reports, billing cycles, periodic maintenance, quarterly reviews

CRON (Expression-Based)

The Schedule Type selector allows switching to CRON for manual cron expression entry. The TIME, DAILY, and MONTHLY tabs serve as a visual cron expression builder - you can either use the calendar-style UI to build your schedule, or enter a raw cron expression directly when Schedule Type is set to "cron".

* * * * *
│ │ │ │ │
│ │ │ │ └─── Day of week (0-6, Sunday=0)
│ │ │ └───── Month (1-12)
│ │ └─────── Day of month (1-31)
│ └───────── Hour (0-23)
└─────────── Minute (0-59)

Cron Expression Examples:

Cron Expression Builder: The frequency editor provides a calendar-style interface for Time, Daily, and Monthly types that generates the underlying cron expression. Advanced users can switch to Cron type for direct expression entry to handle edge cases not covered by the UI builders.

Input Schema and Payload Data

The relationship between Schedule Input Schema and Frequency Payload Data enables validated, parameterized flow executions. This two-level validation system ensures data integrity while maintaining flexibility.

Input Schema (Schedule Level)

• Purpose: Define structure and validation rules for payload data across all frequencies in the schedule
• Format: JSON Schema (standard JSON Schema Draft 7 or compatible specification)
• Default: {"type": "object"} which accepts any JSON structure without validation
• Flexibility: Input Schema allows any type of JSON object - you can define simple schemas or complex nested structures
• Validation: Schema validation applied to each frequency's Payload Data before execution; invalid payloads prevent the flow from running
• Shared Across Frequencies: All frequencies in a schedule validate against the same Input Schema
• Edit Location: Defined in the Schedule editor form (not the Frequency editor)

Payload Data (Frequency Level)

• Purpose: Provide input parameters to Data Flow execution when the frequency triggers
• Format: JSON object that must conform to the parent schedule's Input Schema
• Execution: Passed to the Data Flow as the initial payload/context every time this specific frequency triggers execution
• Per-Frequency Independence: Each frequency can define completely different Payload Data values while adhering to the same schema structure
• Flexibility: Payload data can reference just about anything you need - literal values, identifiers, configuration keys, date ranges, etc.
• References: Can include static values, or reference Application Configurations, environment variables, or any JSON-compatible data
• Validation Indicator: The "Valid" column shows whether this frequency's Payload Data passes schema validation
• Edit Location: Defined in the Frequency editor form (separate from Schedule definition)

Example: Parameterized Integration Schedule

Schedule Configuration:

• Name: E-Commerce Order Sync
• Data Flow: Sync Orders to ERP
• Input Schema:

{
  "type": "object",
  "properties": {
    "source": {
      "type": "string",
      "enum": ["shopify", "magento", "woocommerce"]
    },
    "startDate": {
      "type": "string",
      "format": "date"
    },
    "notificationEmail": {
      "type": "string",
      "format": "email"
    }
  },
  "required": ["source", "startDate"]
}

Frequency 1 - Shopify Morning Sync:

• Schedule Type: Daily - Monday through Friday at 6:00 AM
• Payload Data:

{
  "source": "shopify",
  "startDate": "2024-01-01",
  "notificationEmail": "admin@company.com"
}

Frequency 2 - Magento Evening Sync:

• Schedule Type: Daily - Monday through Friday at 6:00 PM
• Payload Data:

{
  "source": "magento",
  "startDate": "2024-01-01",
  "notificationEmail": "warehouse@company.com"
}

Timezone Handling

• Per-Frequency Configuration: Each frequency has its own timezone setting, allowing the same schedule to execute in multiple timezones
• IANA Timezone Database: Uses standard IANA timezone identifiers (e.g., US/Eastern, Europe/London, Asia/Tokyo)
• Daylight Saving Time: Moment.js automatically handles DST transitions, adjusting execution times appropriately
• Example Use Case: Multi-plant operation where each plant needs 8:00 AM local time execution - create separate frequencies with different timezones

Execution Behavior

• Trigger Mechanism: When a frequency's schedule pattern triggers, the scheduling system executes the associated Data Flow with the frequency's Payload Data as input
• Execution User: All scheduled executions run as the "system" user, not the user who created the schedule or frequency. Audit logs will show "system" as the executor.
• Asynchronous Execution: If multiple frequencies trigger simultaneously (either from the same schedule or different schedules), they execute asynchronously without blocking each other
• Overlapping Executions: If a frequency triggers while a previous execution of the same flow is still running, a new concurrent execution starts immediately (unless flow-level parallelism controls prevent it)
• Parallelism Controls: Flows can be configured with a degree of parallelism setting to control concurrent execution - this helps manage multiple frequencies, manual triggers, data change subscriptions, and other triggers that might cause concurrent flow execution
• No Automatic Retry: Failed executions do not automatically retry. Flows are unlikely to recover automatically, especially integration flows depending on 3rd party systems or APIs. If retry logic is needed, it must be implemented within the flow itself.
• Failure Recovery: When flows fail to execute, there is often an underlying reason (API unavailable, invalid data, network issues). Implement error handling, notification, and retry logic within Data Flows rather than depending on schedule-level recovery.
• Manual Testing: Manual flow executions are typically done within the Flow Designer window using a debug node and a hardcoded payload you provide. Test flows manually with representative payloads before creating schedules.
• Alert Configuration: You can write flows that alert you on any number of variables including X number of failed executions, data processing thresholds, or operational exceptions.

Logging and Monitoring

Critical Concept: Flow Schedules trigger execution but do not automatically log execution details. If your flow is configured to log executions, then logging will occur - but all logging must be configured at the flow level and within individual nodes within the flow.

Schedule-Level Monitoring

The Flow Schedules screen provides these monitoring capabilities:

• Status Message: Displays execution status, configuration errors, or validation warnings for each frequency
• Last Execution: Timestamp showing when the frequency most recently triggered
• Estimated Next Execution: Calculated prediction of next trigger based on schedule pattern and timezone
• Valid Indicator: Checkmark showing whether Payload Data passes Input Schema validation
• Active Status: Both schedule-level and frequency-level active indicators

Flow-Level Logging (Must Be Configured)

These logging capabilities require explicit configuration within Data Flows:

• Flow Logs: Add logging nodes within the Data Flow to capture execution details, intermediate data, and processing steps
• Error Handling: Configure error handling nodes to capture failure details and stack traces
• Integration Logs: API call details and external system interactions logged automatically when using integration nodes
• Custom Logging: Use logging nodes at critical points to track data transformations, decision points, and business logic execution

Metrics and Analytics

• Data Flow Metrics Dashboard: View execution times, frequency of execution, success rates, failure counts, and performance metrics across all flow executions
• Metrics Include: Average execution time, total executions, failure percentage, concurrent execution counts
• Historical Analysis: Track trends over time to identify performance degradation or increasing failure rates

Notifications and Alerts (Flow-Based)

• Notification Channels: Configure notification channels (email, webhook, etc.) and subscribe to specific events
• Email Notifications: Add email notification nodes within flows to send execution summaries, error alerts, or data processing reports
• Conditional Alerts: Implement flow logic to send notifications only on failures, exceptions, or when specific thresholds are exceeded
• Custom Alert Logic: Write flows that alert on any variable you need - X consecutive failures, data volume thresholds, processing time limits, etc.

Permissions and Access Control

Flow Schedules access is controlled through Fuuz's policy-based permission system, enabling granular control over who can create, view, edit, and manage schedules and frequencies.

Default Access Levels

• App Administrators: Full access to create, view, edit, and delete schedules and frequencies
• Developers: Full access to create, view, edit, and delete schedules and frequencies
• Web Access Users: No default access - must be granted explicit permissions via policies assigned to their roles

Granular Permission Options

Permissions for Flow Schedules are very granular and can be configured separately for viewing versus editing:

• View Permissions: Allow users to see schedules, frequencies, execution history, and status without ability to modify
• Edit Permissions: Allow users to create, modify, activate/deactivate, and delete schedules and frequencies
• Schedule-Level Control: Permissions can be granted for managing schedules (parent level)
• Frequency-Level Control: Permissions can be granted for managing frequencies within schedules

Policy Configuration

To grant Flow Schedules access to Web Access users:

1. Navigate to Access Control > Policies
2. Create or edit a Policy Group and Policy
3. Add specific permissions for:
   • Creating Flow Schedules
   • Managing Flow Schedules
   • Creating Frequencies
   • Managing Frequencies
4. Assign the Policy to Roles
5. Assign Roles to Web Access users who need Flow Schedules access

Audit and Accountability

• Creation Tracking: Schedule and frequency records track which user created them
• Modification Tracking: Changes to schedules and frequencies are tracked in Data Change History
• Execution User: All scheduled flow executions run as "system" user regardless of who created the schedule - this ensures consistent execution permissions and prevents issues when creator's access changes
• Audit Logs: Data Change History shows who created, modified, activated, or deactivated schedules and frequencies

Scope and Migration

• Per Application: All schedules are scoped to specific applications - each application has its own independent set of schedules
• Per Environment: Schedules exist separately in build, QA, and production environments
• No Auto-Replication: Changes to schedules in one environment do not automatically propagate to other environments
• Package Migration: Schedules can be included in application packages and migrated between environments
• Data Flow Dependency: Underlying Data Flows must exist in the destination environment for schedules to function after migration
• Environment-Specific Configuration: After migration, review timezone settings, payload data, and execution patterns to ensure they're appropriate for the destination environment

Holiday and Exception Handling

Fuuz does not have a built-in holiday calendar system. To exclude holidays or implement custom date-based logic:

• Flow-Based Logic: Implement holiday checking logic at the beginning of the Data Flow
• Custom Data Model: Create a Holiday data model with dates and descriptions for your organization's holiday calendar
• Application Configuration: Store holiday dates in Application Configurations for easy maintenance without flow changes
• Exit Early Pattern: Check current date against holiday list and exit flow early if it matches
• Manual Control: Temporarily deactivate frequencies before holidays and re-activate after
• Timezone Considerations: Ensure holiday checking logic accounts for timezone differences if operating across multiple regions

Example Flow Pattern:

1. Flow execution starts from schedule trigger
2. First node queries Holiday data model or Application Configuration
3. Compare current date (in appropriate timezone) against holiday list
4. If holiday match, log "Skipped due to holiday" and exit flow
5. If not holiday, continue with normal flow processing

6. Resources

• Cron Expression Reference
• Moment.js Timezone Documentation
• IANA Timezone Database
• Related KB Article: Data Flows Overview
• Related KB Article: Data Flow Metrics Dashboard
• Related KB Article: Notifications Configuration
• Related KB Article: Application Configurations
• Related KB Article: Access Control - Policies and Roles

7. Troubleshooting

Best Practices

• Test Before Scheduling: Always test Data Flows manually with representative payloads in Flow Designer before creating schedules. Verify flow handles all expected input scenarios and error conditions.
• Use Descriptive Names: Name schedules and frequencies descriptively to indicate their purpose and timing (e.g., "Daily Order Sync - Weekdays 6AM" not "Schedule 1").
• Document with Descriptions: Use markdown in Description fields to document schedule purpose, frequency patterns, payload structures, and any special considerations or dependencies.
• Define Comprehensive Input Schemas: Create detailed Input Schemas that validate all required payload fields. This prevents execution failures due to missing or malformed parameters.
• Implement Flow-Level Error Handling: Add error handling, retry logic, and notification mechanisms within Data Flows - schedules do not provide automatic retry on failure.
• Use Application Configurations for Dynamic Logic: Instead of creating dozens of similar schedules with different parameters, use Application Configurations referenced within flows to drive behavior based on context.
• Stagger Execution Times: Avoid scheduling many frequencies at the same time. Stagger by a few minutes to distribute system load and prevent resource contention.
• Monitor Execution Health: Regularly review Data Flow Metrics Dashboard, Status Messages, and Last Execution timestamps to ensure schedules are executing as expected.
• Leverage Multiple Frequencies Per Schedule: Use multiple frequencies within a single schedule for complex timing patterns (e.g., hourly during business hours + once daily overnight) instead of creating separate schedules.
• Consider Timezone Carefully: Choose timezone based on where the schedule should logically execute. Use UTC for timezone-independent operations or local timezones for business-hour-aware schedules.
• Use Calendar UI Over Raw Cron: Prefer Time, Daily, and Monthly schedule types over raw Cron expressions when possible - they're more maintainable and less error-prone.
• Plan for Daylight Saving Time: Be aware that execution times shift with DST transitions. Design flows to handle potential 1-hour timing variations during transition periods.
• Implement Business Rule Logic in Flows: For holiday exclusions, custom date patterns, or conditional execution, implement the logic within the Data Flow rather than trying to encode it in schedule configuration.
• Document Cross-Environment Dependencies: When migrating schedules via packages, document any environment-specific configurations (credentials, endpoints, etc.) that need manual adjustment in destination.
• Use Active Checkboxes for Operational Control: Disable schedules or frequencies temporarily using Active checkboxes rather than deleting - this preserves configuration and allows easy re-enablement.
• Test Payload Schema Validation: Before activating frequencies, verify Payload Data validates against Input Schema by checking the Valid indicator. Fix validation errors before enabling.
• Configure Logging and Notifications: Add logging nodes and email notification nodes within flows to track execution success, failures, and data processing summaries.
• Version Control Flow Changes: When modifying Data Flows referenced by schedules, test thoroughly in non-production environments first. Schedule-triggered flows execute automatically and errors can impact operations.

8. Revision History
